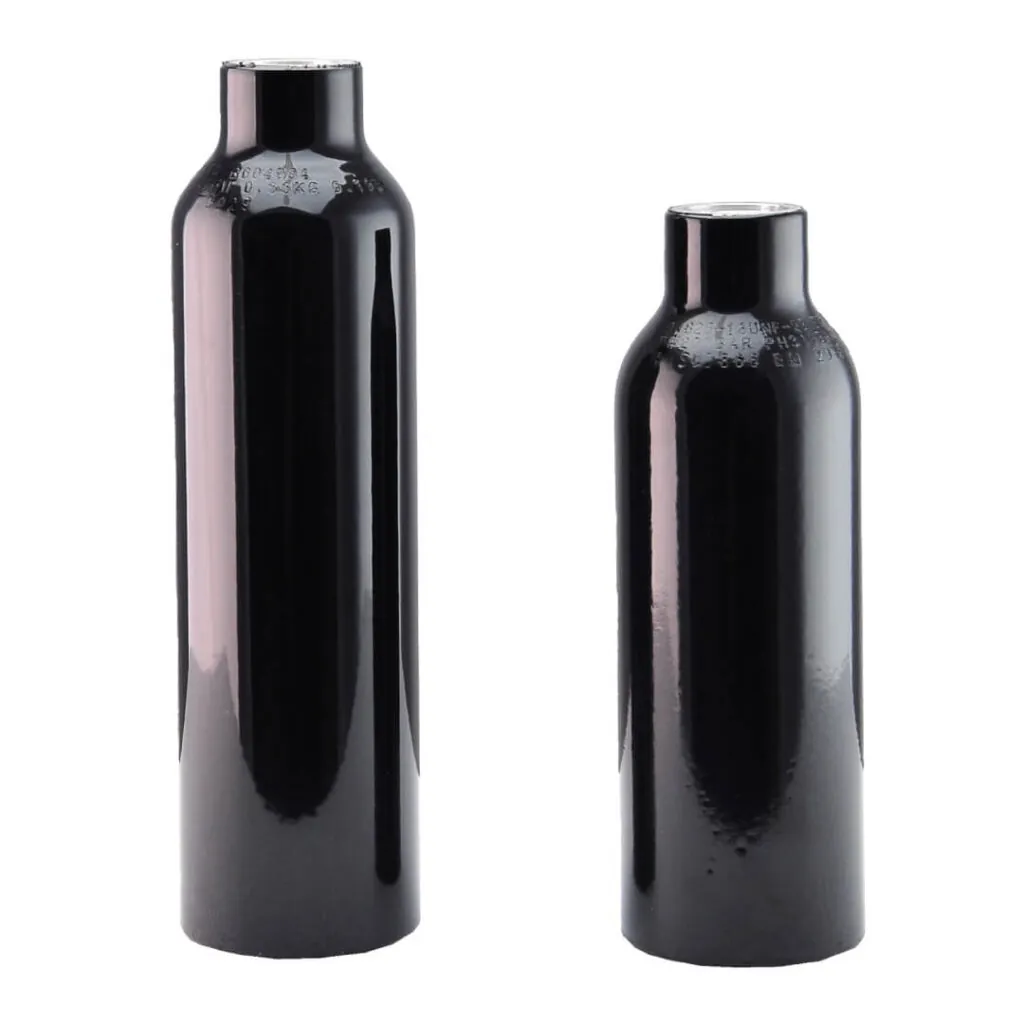

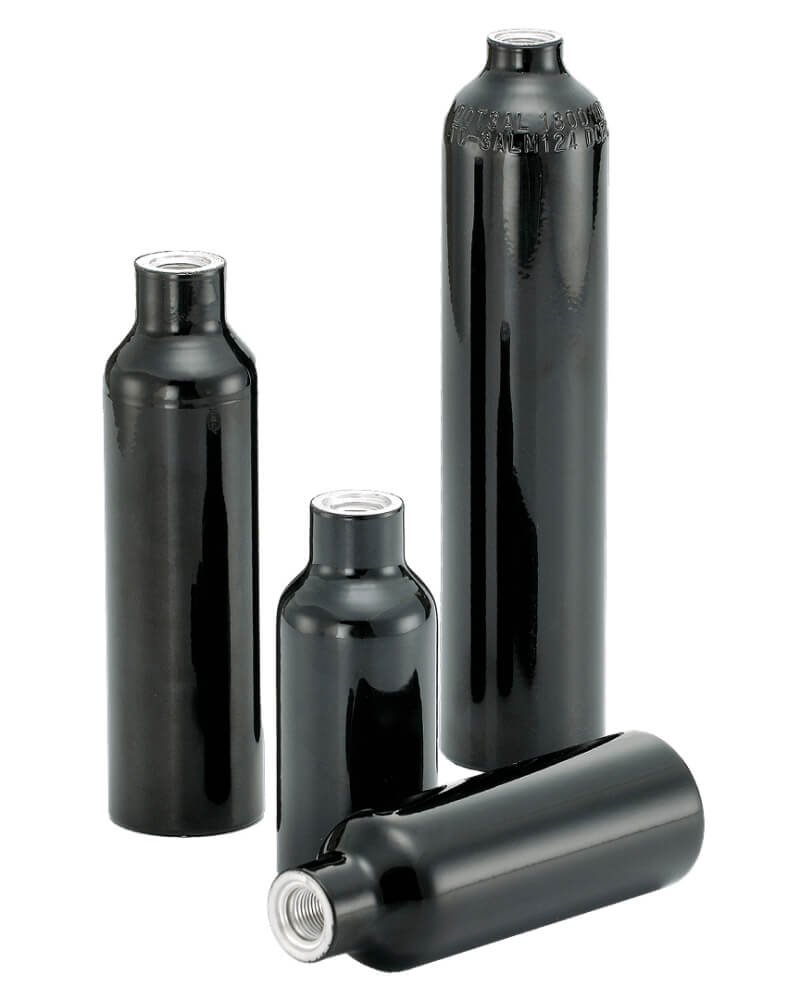

We manufacture high-pressure PCP air tanks using A6061 aluminum alloy, built for pre-charged pneumatic (PCP) air rifles. These cylinders are lightweight, corrosion-resistant, and pressure-tested to meet ISO standards for safety and consistency.
Our aluminum PCP tanks are engineered for pre-charged pneumatic air rifles, delivering stable high-pressure output for accurate shot consistency and rapid refills. Designed for sports shooters, airgun tuners, and system integrators, each cylinder meets the performance standards required by today’s high-output PCP setups.
DC PCP tanks support a wide range of use cases:

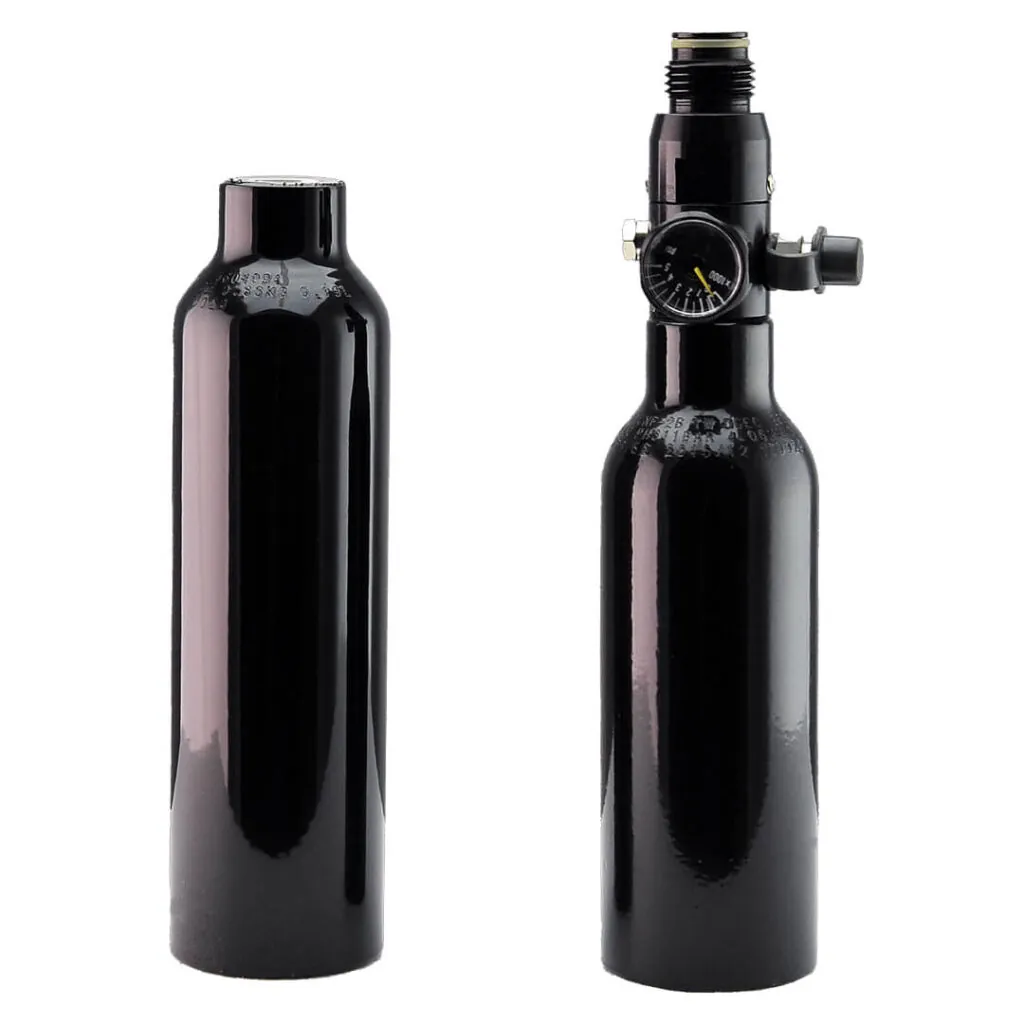

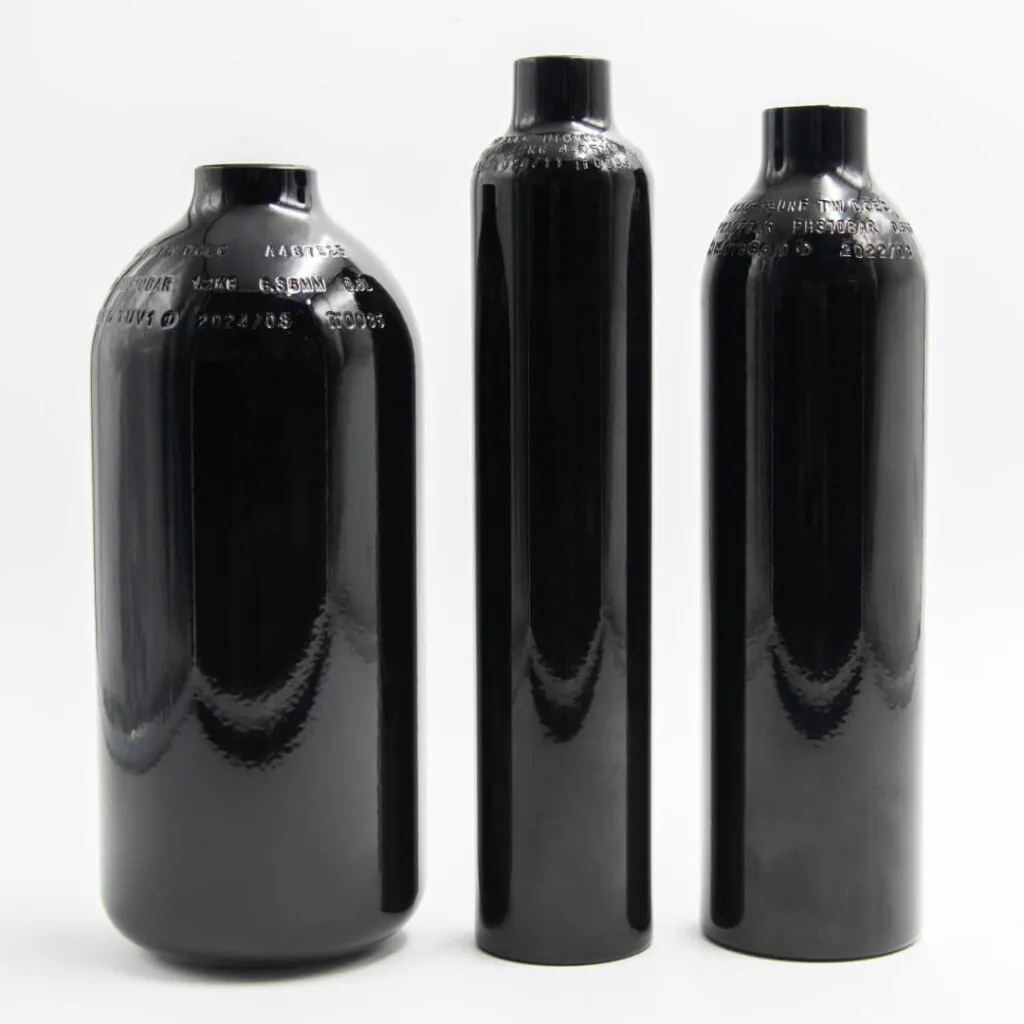

Every tank is built from A6061 aluminum, rated up to 3000 psi, and pressure-tested to ISO 7866 standards. Round-bottom and standard options are available, all fully traceable with batch, pressure, and inspection records.

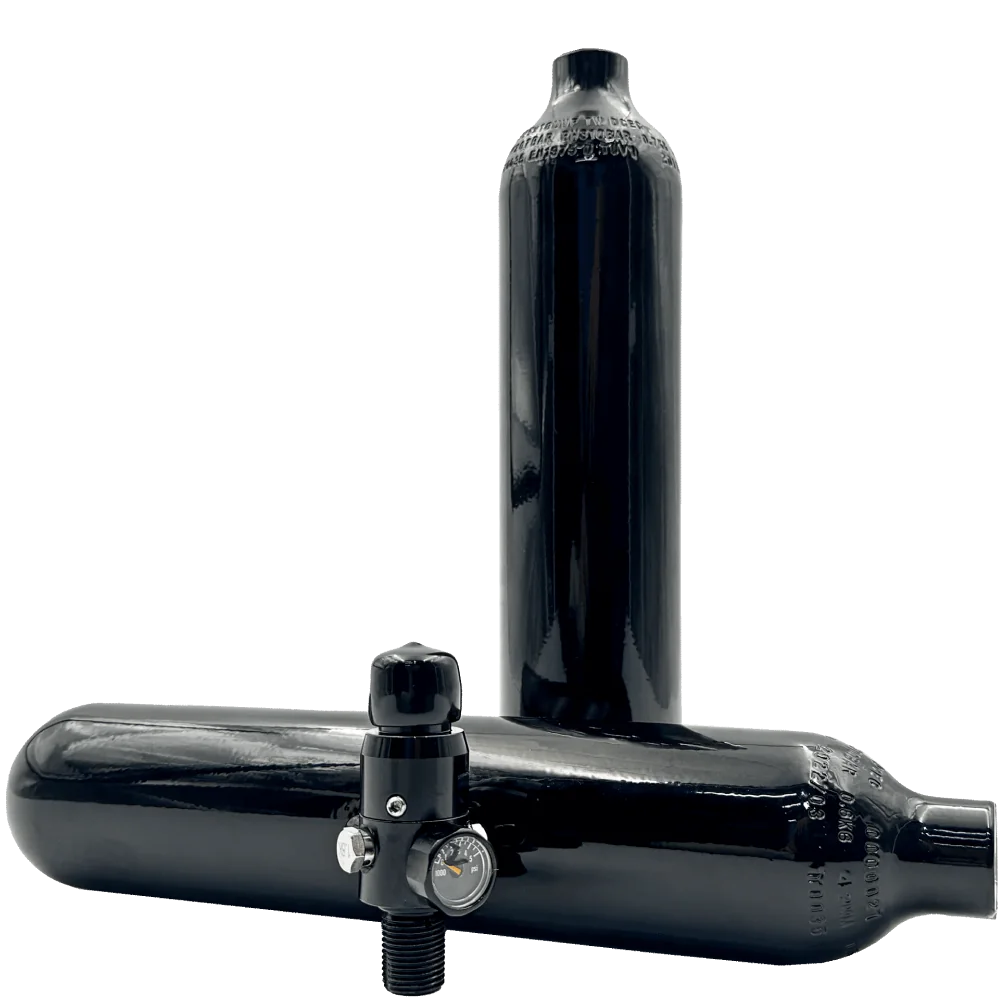

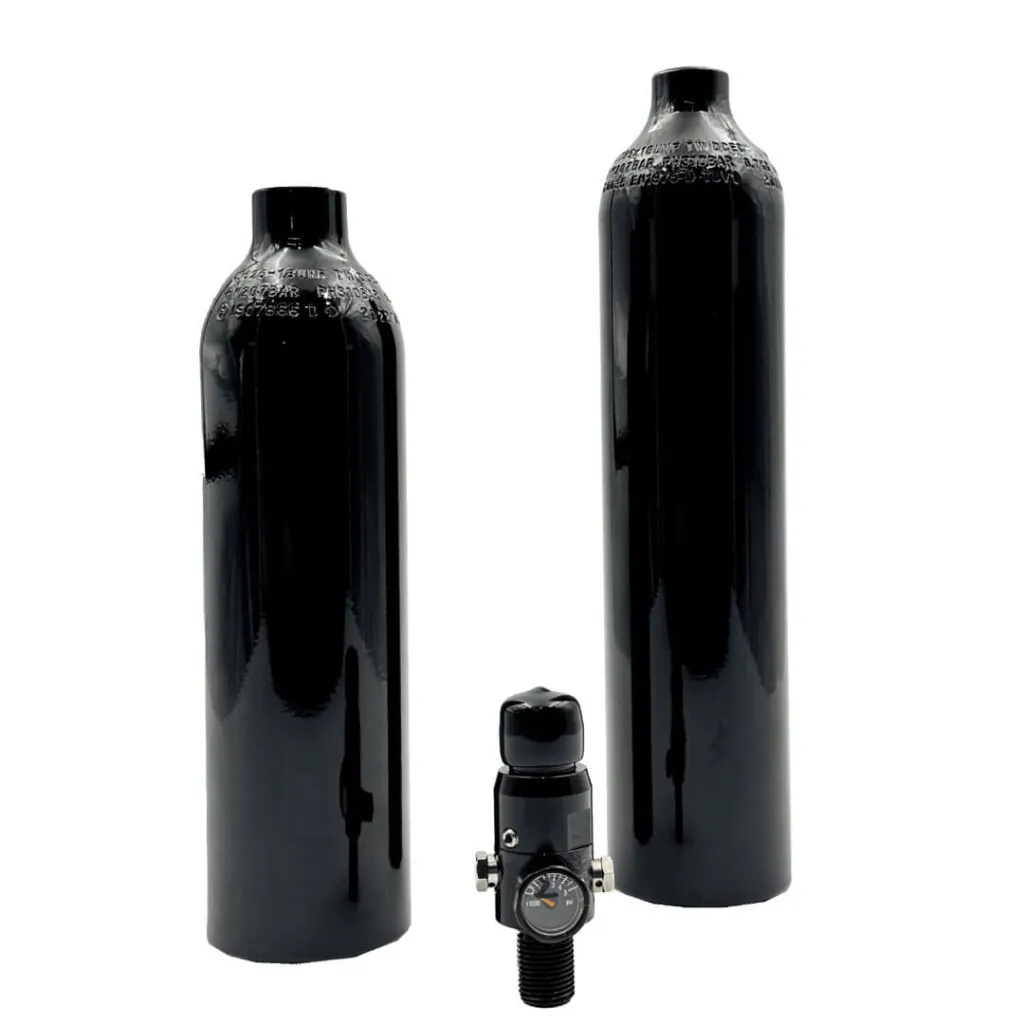

We provide a full range of regulator options for PCP air tanks, including fixed, adjustable, and retrofit configurations. Whether you’re tuning for field use, target shooting, or competition-grade accuracy, our regulators deliver the consistent pressure control your setup demands.
| Model | DC-AH22 (22CI) | DC-AH26 (26CI) | DC-AH30 (30CI) | DC-P35 (22CI) | DC-P50 (30CI) | DC-B18 (18CI) |
|---|---|---|---|---|---|---|
| Working Pressure (psi/bar) | 3000 / 207 | 3000 / 207 | 3000 / 207 | 3000 / 207 | 3000 / 207 | 3000 / 207 |
| Diameter (mm) | 63.8 | 63.8 | 63.8 | 60 | 60 | 50.5 |
| Length (mm) | 205 | 230 | 270 | 230 | 305 | 245 |
| Weight (kg) | 0.59 | 0.62 | 0.75 | 0.50 | 0.62 | 0.42 |
| Water Capacity (L) | 0.36 | 0.43 | 0.5 | 0.35 | 0.52 | 0.3 |
| Thread Size | 5/8-18UNF | 5/8-18UNF | 5/8-18UNF | M18×1.5 | M18×1.5 | 5/8-18UNF |
We offer customization of PCP air tanks based on your requirements.

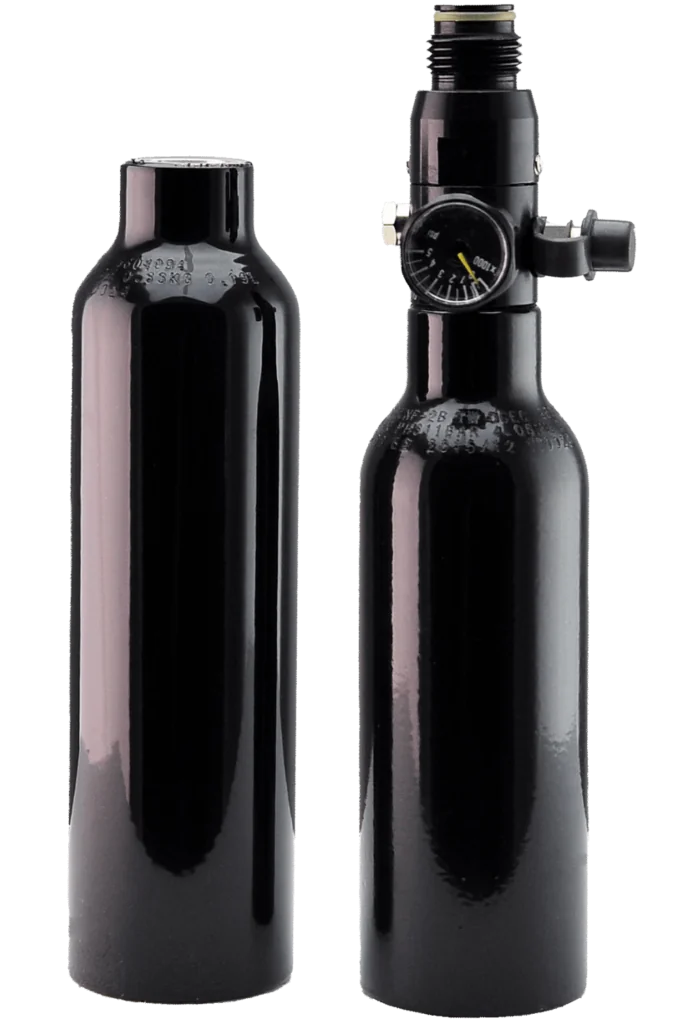

We support custom production of aluminum PCP cylinders for OEMs, distributors, and private label brands. You can define thread specs, regulator styles, finishes, and branding elements during the inquiry stage to match your technical or retail goals.
Our PCP cylinders meet ISO and TPED requirements for global use. Each tank is batch-tested for strength, pressure resistance, and sealing integrity, with documentation available for traceability and compliance checks.
All cylinders are tested and certified for international transport and use.
If your question is not listed here, please contact us and we will be glad to assist you.
Yes. All models are TPED and ISO compliant. DOT and RHO certifications are pending.

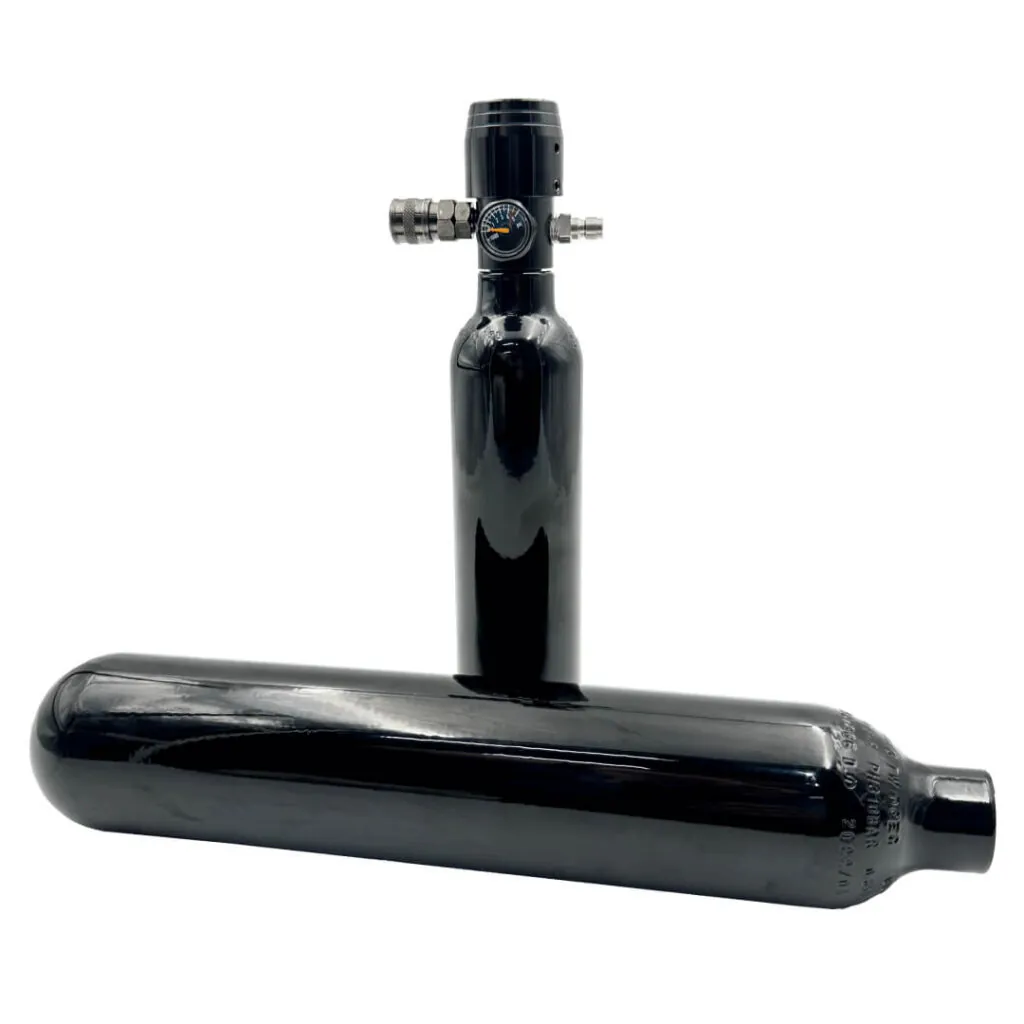

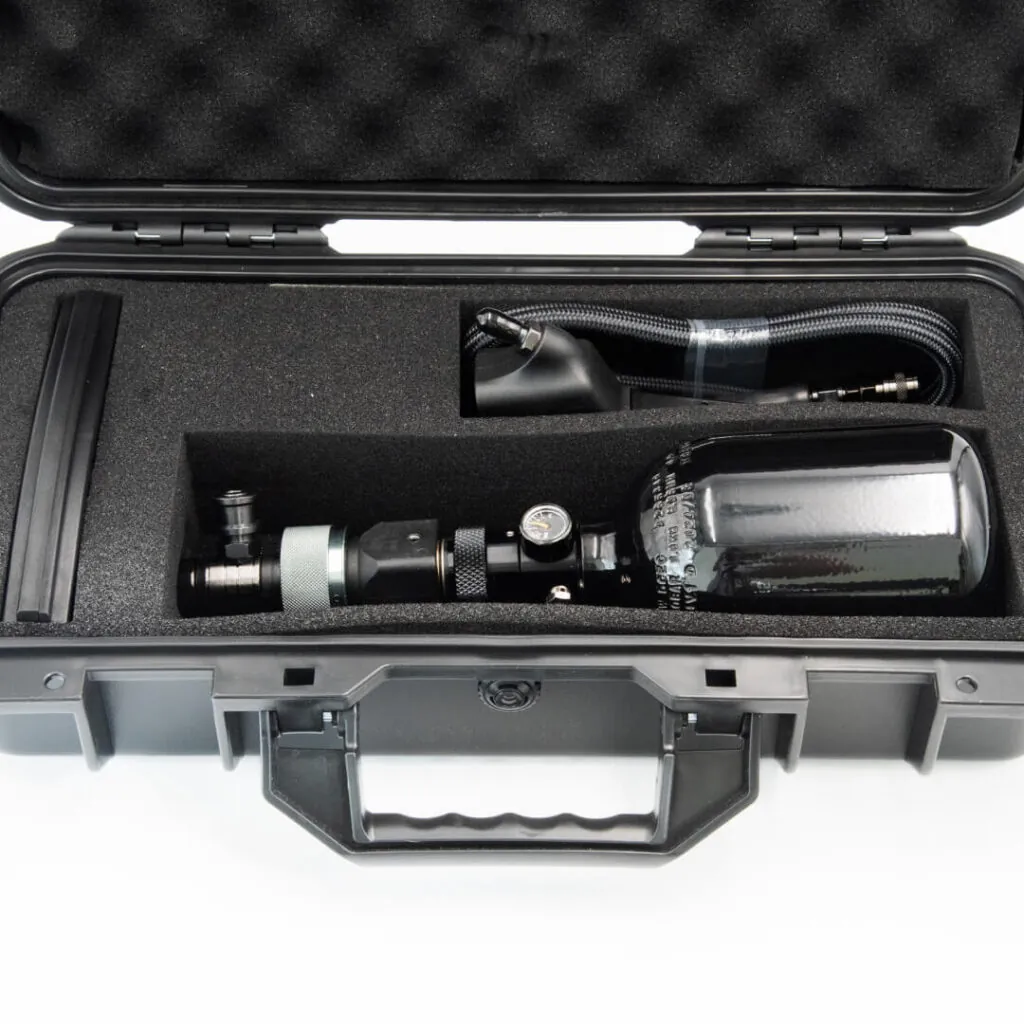

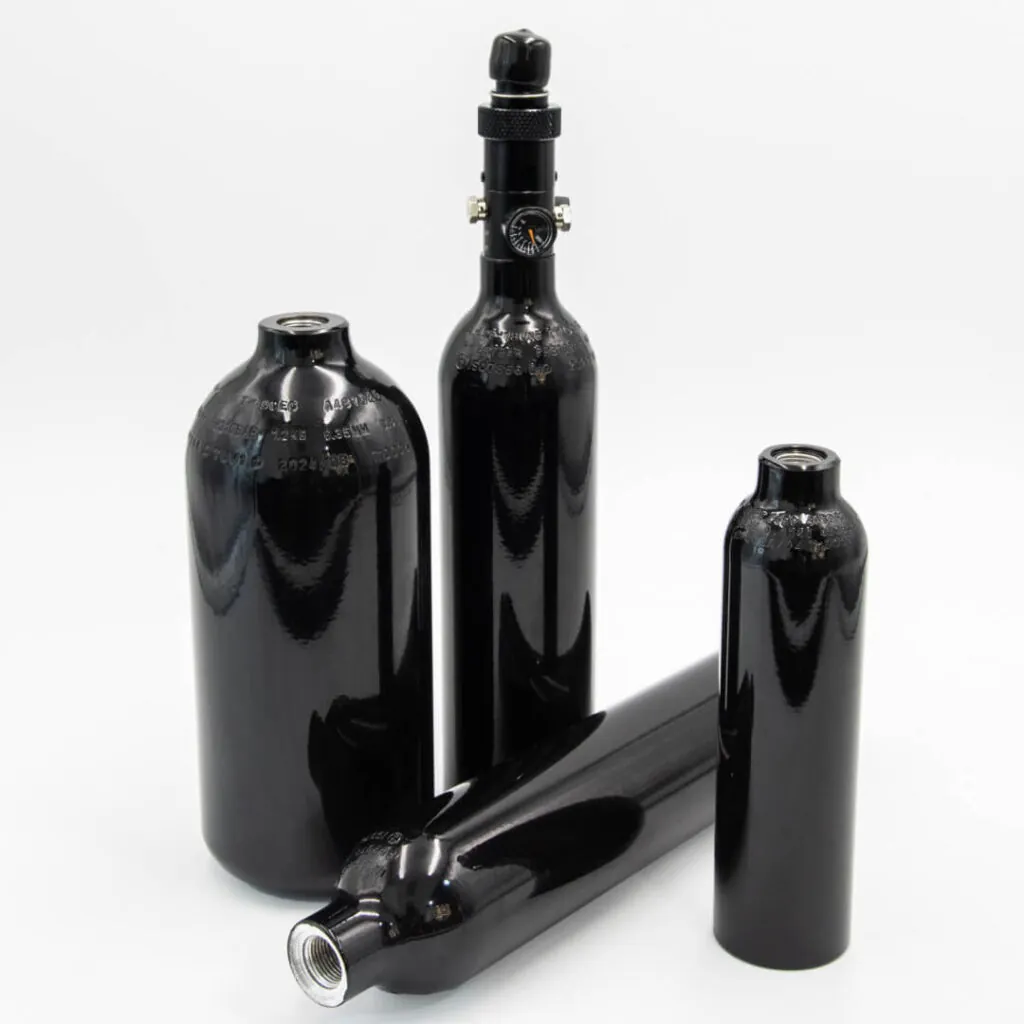

Yes. We offer pre-installed, leak-tested valves and matched regulators for fast integration into PCP rifle setups.
We supply fixed output, adjustable, and retrofit regulators with pressure ranges from 80 to 300 psi. Available in factory-set or adjustable versions.
Yes. Every order includes raw material certificates, hydrostatic test results, and batch tracking data.
Yes. We offer powder coating, screen printing, and laser-etched options for OEM and private label programs. Custom colors require a minimum order.

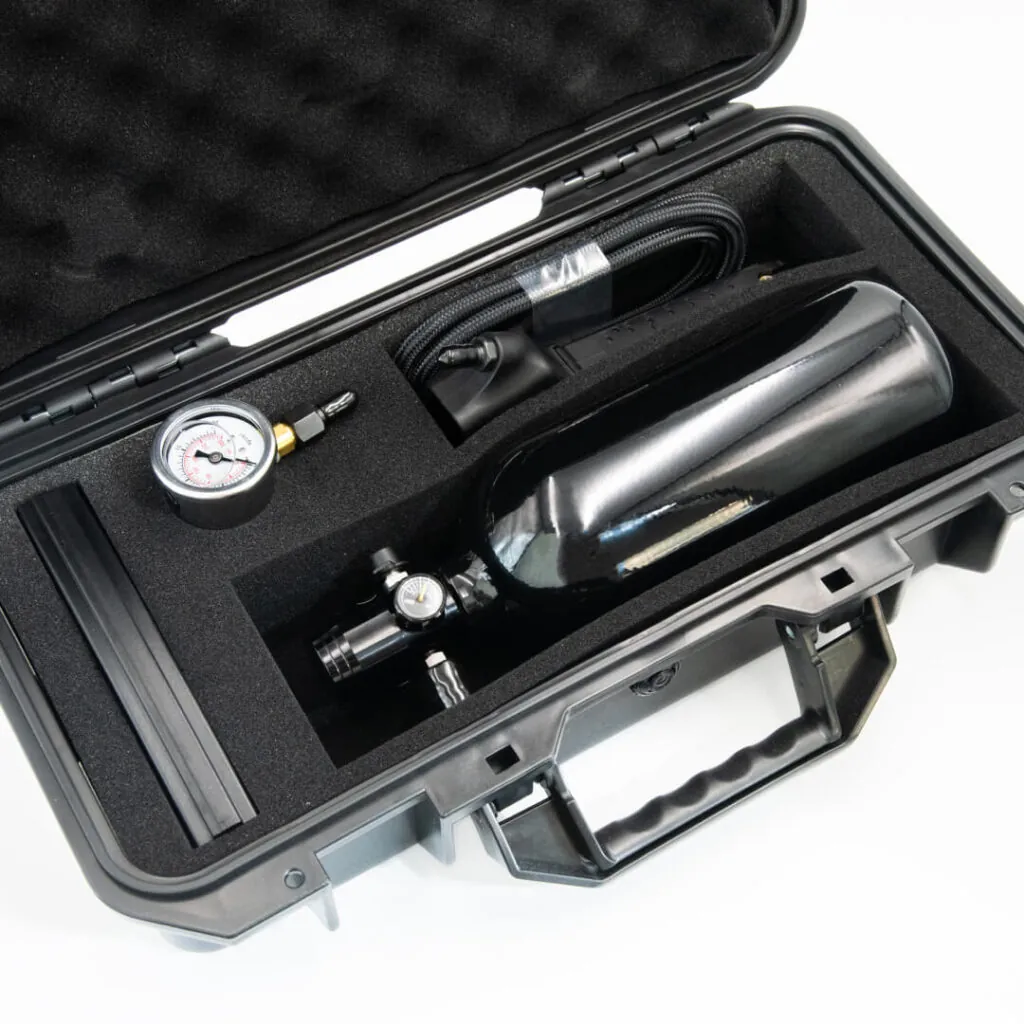

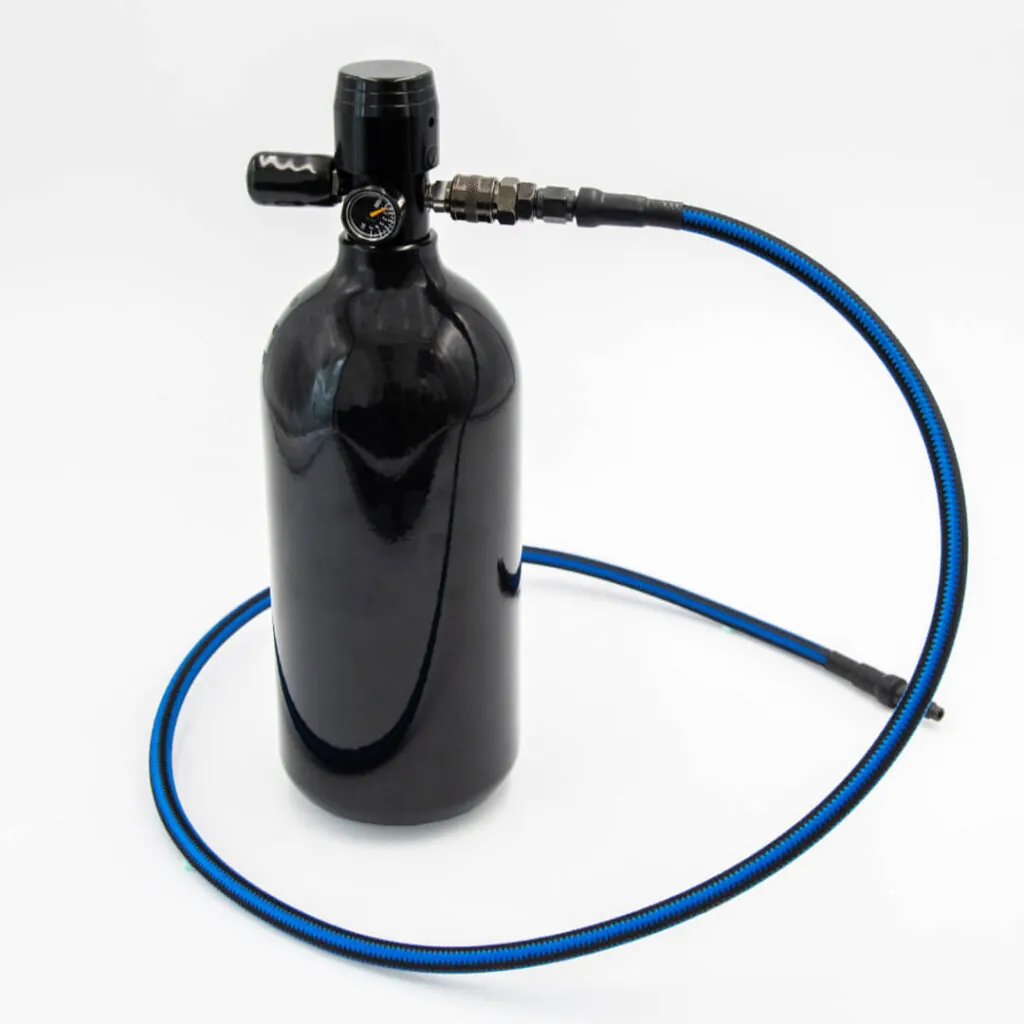

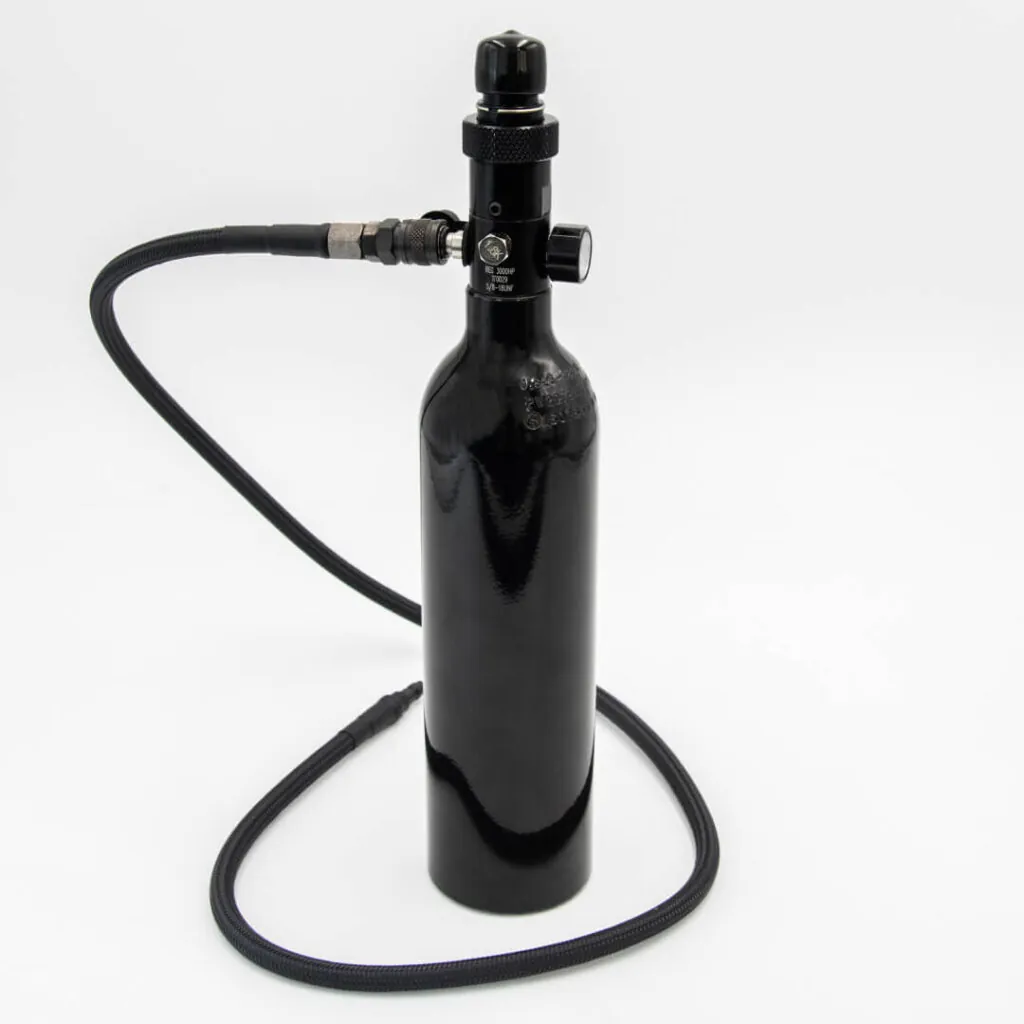

Optional hose kits are available. Each includes a 500 psi rated braided hose with 3000 psi burst resistance and protective end sleeves. Fill nipples and gauges available upon request.
Yes. We use 5/8-18UNF or M18×1.5 threading, compatible with most PCP regulators (including Ninja, Valken, and others). Suitable for direct fill, quick disconnect, or retrofit use.
